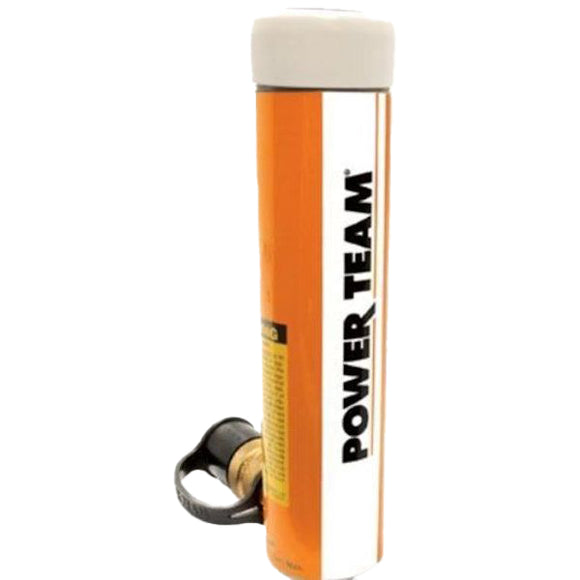

🛠️ POWER TEAM 15 Ton Hydraulic Ram – 6" Stroke | Heavy-Duty Lifting & Pressing Power
The POWER TEAM 15T Hydraulic Ram is built for serious performance in lifting, pressing, and heavy-duty shop work. Designed with rugged durability and precise engineering, this high-quality cylinder delivers reliable power with a 6-inch stroke and solid steel construction.
✅ 15-ton capacity with 6" stroke – ideal for lifting & pressing tasks

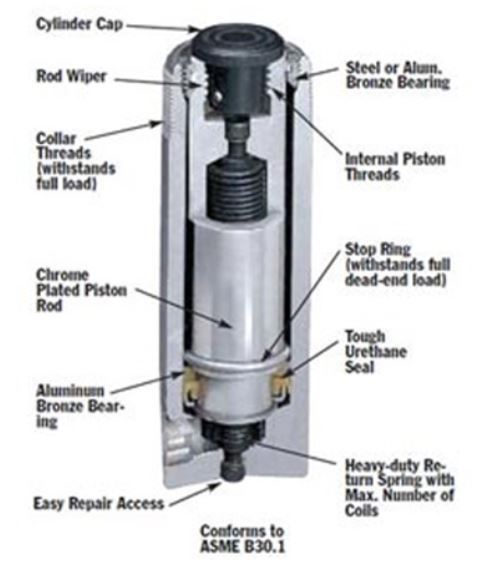

✅ Aluminum bronze bearing minimizes wear from off-center loads
✅ Max-sized return springs for fast retraction and extended spring life
✅ Chrome-plated piston rod resists corrosion and wear
✅ Versatile threading options for piston rod, collar, and base
✅ Base mounting holes standard for easy installation
Specifictions
- Cylinder Capacity (Tons): 15
- Stroke (in.): 6 1/8
- Oil Cap. (cu. In.): 19.2
- Bore Diameter (in.): 2
- Cylinder Effective Area (sq. in): 3.142
- Internal Pressure at Cap. (psi): 9549
- Tons at 10;000 psi (psi): 15.7
- Weight (lbs.): 15.3
- Retracted Height (in.): 10 2/3
- Extended Height (in.): 16 4/5
- Outiside Diameter (in.): 2 3/4
- Collar Thread (in.): 2 3/4-16
- Piston Collar Thread Length (in.): 1 1/8
- Base to Port (in.): 3/4
- Piston Rod Diameter (in.): 1 3/4
- Piston Internal Thread and Depth (in.): 1-8 x 3/4
- Rod Protrusion (in.): 1/4
